304 Stainless Steel Flap Barrier Turnstile with RS485 Communication IP54 Protection and Customizable Arm Length

Name: 304 Stainless Steel Flap Barrier Turnstile with RS485 Communication IP54 Protection and Customizable Arm Length
Brand: AnKuai
Price: 120 USD

Cheap 304 Stainless Steel Flap Barrier Turnstile with RS485 Communication IP54 Protection and Customizable Arm Length for sale

Model Number : AKT322

Brand Name : AnKuai

Place of Origin : Guangdong, China

MOQ : 1

Price : $120-150

Access control : ESD System, Face Recognition, IC Card, Fingerprint, QR Code, RFID Card

Barrier speed : 0.2 s, 0.4 s, 1 s, 0.6 s, 0.5 s, 0.8 s, 1.2 s, 2 s, 1.5 s

Communication interface : Rs485, RS-232

Operation direction : 1-Way

Barrier motor : Brushless Motor

Material : 304 grade stainless steel

Turnstile functions : Counting Function, Collision Avoidance, Anti-Pinch, Anti-Tailgating

Power supply : 220VAC 50HZ / 110VAC 60HZ

Size : 1050(H)*168(D) mm

Arm length : 500-900mm(optional)

Pass rate : 30-40 persons per minute

MCBF : around 4 million times

Input voltage : 12v dry contact

Weight : 40kg

Power consumption : 32w

Contact Now

Product Description

304 stainless steel security access controlentrance gate barrier

1. It's widely installed in the front of entrance or path to manage the pedestrian traffic. 2. Working way: manual lightly push the swing arm, then peopel can easily go through the Turnstile Gate, after that, the arm will auto return to close state. 3. Pass direction: one way or two ways to set for you. 4. The MOQ:1 unit. 5. the length of swing arm: in 900mm (can be custom-made under your request).

304 Stainless Steel Flap Barrier Turnstile with RS485 Communication IP54 Protection and Customizable Arm Length

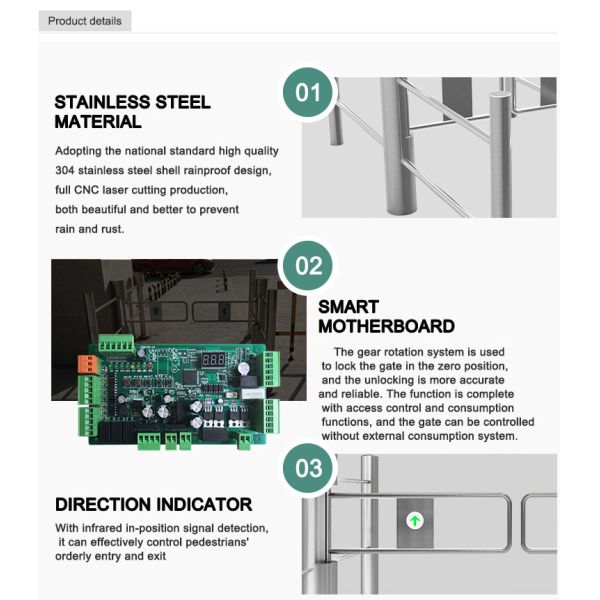

Feature highlights

This manual swing turnstile gate is made of 304 stainless steel, ensuring durability and corrosion resistance. It features a customizable arm length of 600-900mm and supports one-way or two-way passage settings. With an operating temperature range of -25℃ to +60℃ and a transit speed of 30-45 persons per minute, it suits various environments like stations, offices, and hotels. Certified with CE and RoHS, it complies with EU safety standards, providing market access and regulatory advantages.

Specification

name	supermarket swing turnstile
Model Number	AKT322
type	swing barrier gate
material	304 grade stainless steel
size	1050(H)*168(D)
weight	40kg
arms length	500-900mm(optional)
working voltage	AC220V(10%more or less ),50(10%more or less )HZ
Pass rate	30-40 persons per minute
protection grade	IP54
communication interface	one standard port-RS485
Life time	around 4 million times
Environment temperature	-25ºC±70ºC
Power consumption	32w
Input	12v dry contact
humidity	≤90%
